CAMERA MACRO LENS

Macro photography refers to close-up photography; the classical

definition that the image projected on the "film plane" (i.e film or a digital

sensor) is the same size as the subject.

Most smartphone cameras have a built-in

Macro function that is actually reasonable for dental photography

purposes. However, a dedicated Macro lens attached to a DSLR or

mirrorless camera provides much better quality close-up photos, with

higher optical definition and better focus, and is by far the superior choice.

LIGHTING ACCESSORIES

© Shadi Samawi | 2024. All Rights Reserved.

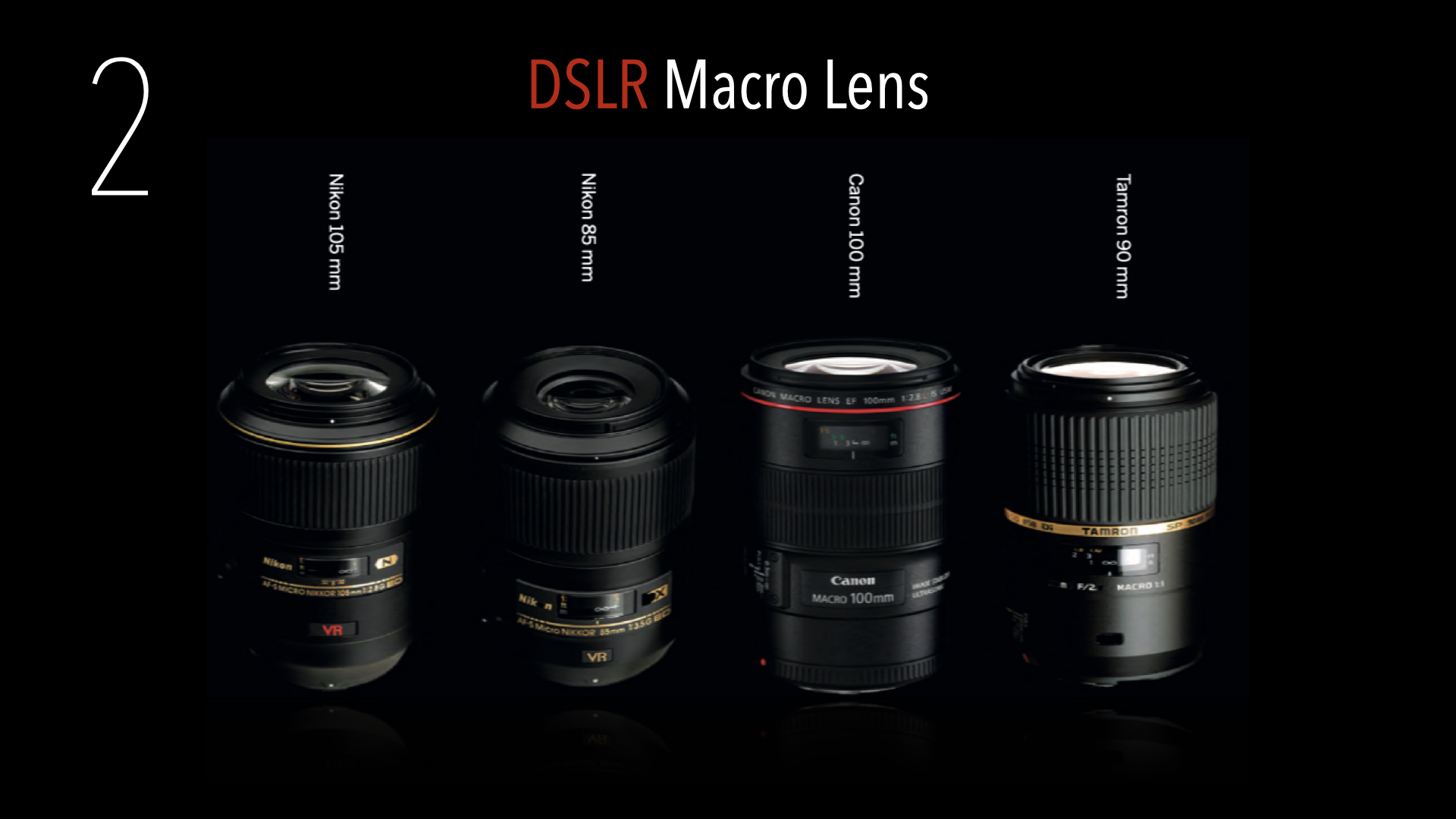

Canon

Nikon Nikon Tamron

MACRO EF100mm

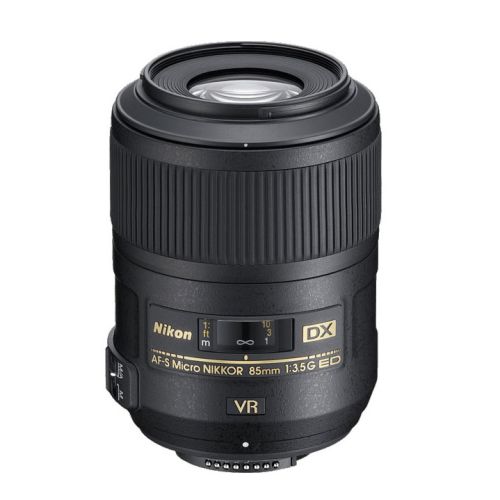

NIKKOR 105mm f2.8 NIKKOR 85mm f3.5 90mm f2.8

f2.8 - L series

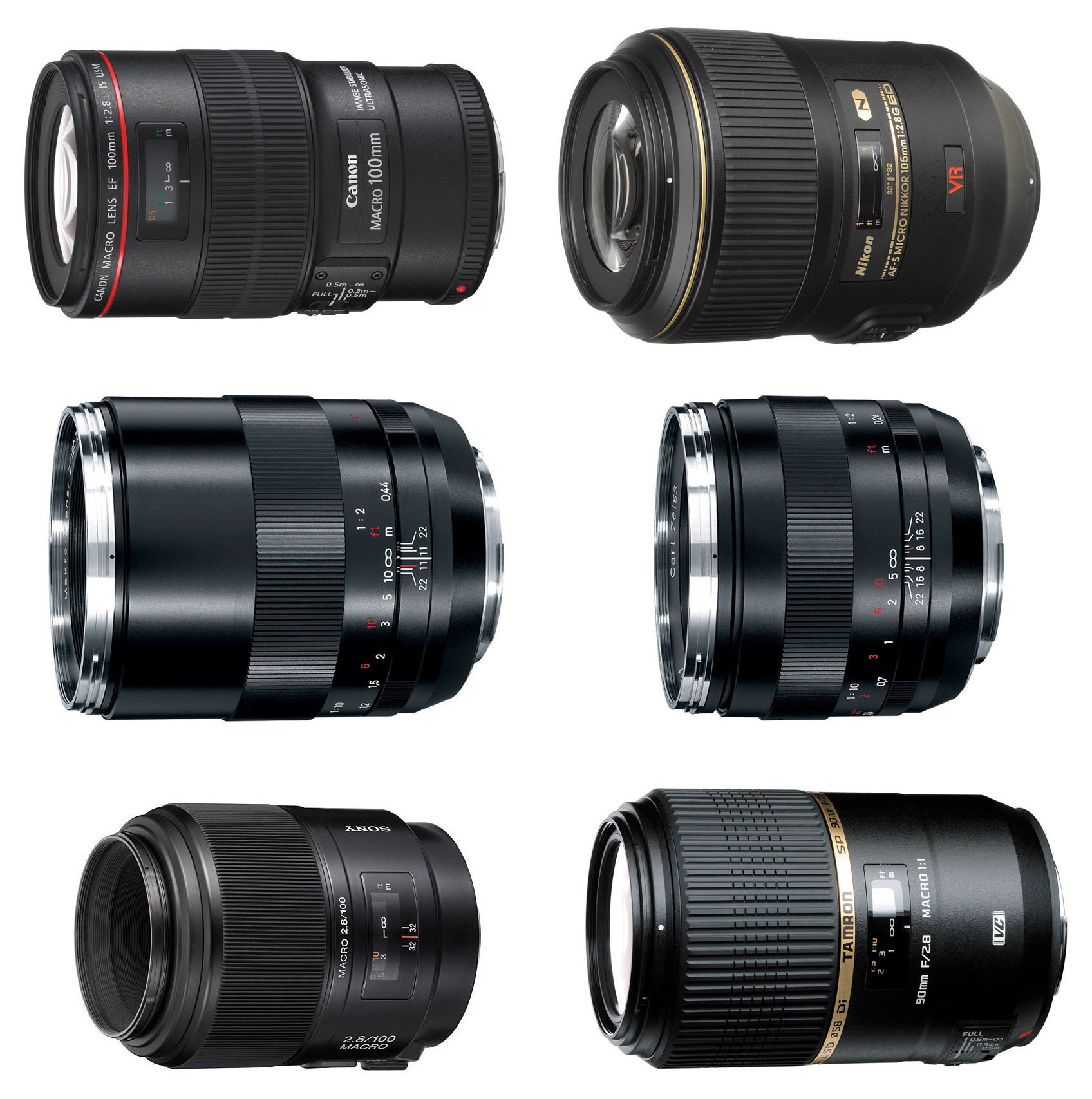

Macro lenses with a focal range between 85-135 mm are all generally suitable for our clinical photography purposes.

The most common focal length is 100mm and a True Macro (1:1) ratio, such as the Canon Macro 100mm F2.8 II USM or L-series version are ideal.

Third-party macro lenses such as those from Sigma, Tokina and Tamron - among others - can also be a great yet less expensive alternative.

© Shadi Samawi | 2024. All Rights Reserved.

BEWARE of Lens Distortion at Different Focal lengths!

Smaller Focal Ranges (Wide Angle Lenses), Such As Those On Most Smartphone

Cameras Cause Barrel Distortion Of Images, Unless Compensated For Through Software

Or Modifying The Photographic Distance From Subject To Minimize The Distortion Effect.

© Shadi Samawi | 2024. All Rights Reserved.

BEWARE of Lens Distortion at Different Focal lengths!
