Buttons

Buttons allow the user to select an option, and are created with :

DDgui_button(id$, text$, [, width%, height%])

with id$ being a unique identifier, and text$ is the text to be displayed.

width% and height% are optional.  If these are given, the the widget will be created with the horizontal size defined by width% and the vertical size by height%.

If these values aren't given, the the widget with take the horizontal size of the text length and the font height.

A button has two graphic modes.  One when the mouse pointer is over it, and one when it isn't :

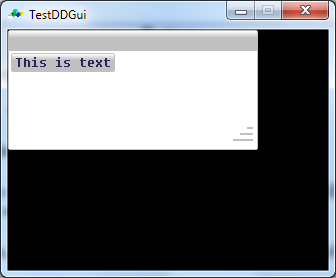

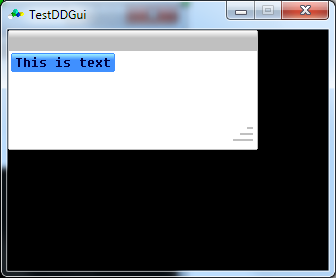

Mouse NOT over button    Mouse OVER button

Buttons can also have sprites in them.  This is done by setting text$ to “SPR_B” and appending the sprite index to it

With SPR_B, the sprite size (if width% and height% are 0) will be used to calculate the size of the button.

In addition, a button can have a filled colour.  This is done by setting text$ to “SPR_C” and appending an integer colour to it.  The size of the button created is based on the

width% and height% values – if either of these are 0, then the default width (or height) is 32

SPR_C buttons, when pressed will open the Colour Dialog window.
